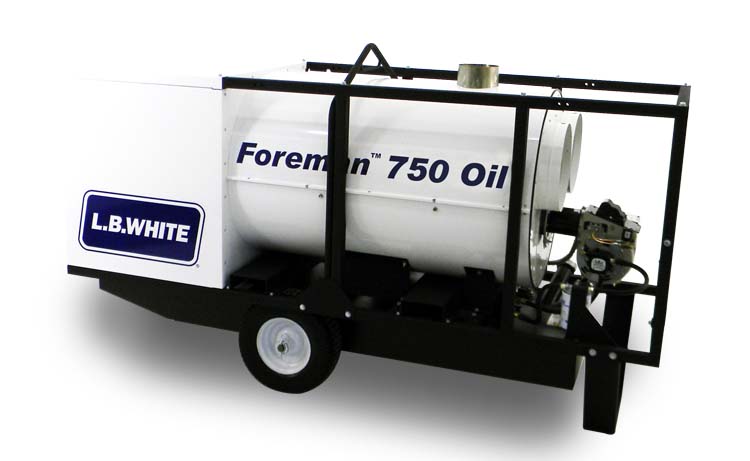

FOREMAN® 750 OIL 2.0 DIRECT-FIRED PORTABLE HEATER
BTU/HR: 750,000
The Foreman® OIL 2.0 indirect-fired heaters are ideal for applications requiring vented heat. The L.B. White Foremans feature a heat exchanger that keeps heated and combustion air separate for the ultimate in clean, dry heat.
FEATURES
- Dual Fuel-Runs on LPG or NG
- Reliable CFM with two 12” dia. outlet
- Foreman 750 is the lightest weight in its class and only one-personal portable 750,000 btu/hr indirect-fired heater on the market
- Quiet operation at 70 dB or less
- Operator-friendly control panel with:
- Voltmeter that monitors incoming volts
- Hour meter that clocks actual runtime (heat mode only)
- Status and diagnostic lights
- Ease of servicing - no belt to maintain
- More maneuverable
- Reduction in length
- Reduction in weight
- Foreman 750 now 120v
- Loaded with options to aid fuel efficiency including thermostatic control, recirculation mode, and fan-only vent mode
- 62-gal. fuel tank (operates as a backup tank)
- Remote tank connection that allows for quick switch to backup fuel tank (standard with Foreman 750)
- Jobsite tough with indoor/outdoor rating, robust parts and protective frame
- Efficient storage options with no flat wheels and frame that allows for vertical stacking
SPECS
| FOREMAN® | 750 Oil 2.0 |
|---|---|
| BTU/HR Rating | 750,000 |
| Blower Fan Output (CFM) | 4,280 |
| Fuel Type | #1 or #2 Diesel |
| Fuel Consumption Max NG (gal/hr) | 5.4 |
| Pump Pressure (PSI) | |
| Burner Type | BECKETT |
| Tank Size (gal) | 60 |
| Outlet Static Pressure (in. W.C.) | 2.5 |
| Motor Horsepower | 1.0 |
| Electrical Supply (volts/hz/phase) | 120/60/1 |
| Amps (start/continuous) | 60 / 17 |
| L x W x H (in.) | 84.5 x 33.25 x 52.5 |
| Ship Weight (lbs) | 865 |
| Single Point Lifting Bale | Standard |
| Fork Lift Holes | Standard |
| Self-Diagnostic System | Standard |
| Outlet Duct Diameter (in.) | 12 |
| Outlet Duct Connection | 2 |
| Outlet Duct Max Length (ft.) | 100 |
| Air Recirculation Inlet Dia. (in.) | 20 |
| U.S./Canadian Certification | Yes |
ACCESSORIES
Duct 12" X 25'
Part #: 30052
Sold separately.
Exhaust Pipe Extension 6" dia.
Part #: 30161
Sold separately.
Rain Cap Part #: 30162
Sold separately.
Hose 3/4" x 15 ft.
Part #: 25965
Sold separately.
Stacking Kit Part #: 30903
Sold separately.
Thermostat Nema 4X w/ 25 ft.
Part #: 30125
Sold separately.
Adapter Kit 16" dia. (fits two 12" dia. ducting)
Part #: 30902
Sold separately.
Additional parts & accessories are available here.
OWNERS MANUAL
Schematics, setup instructions, and more for Foreman®
SERVICE PARTS
Identify the replacement parts you may need for Foreman® 750 Oil 2.0 Direct-Fired Portable Heaters.
