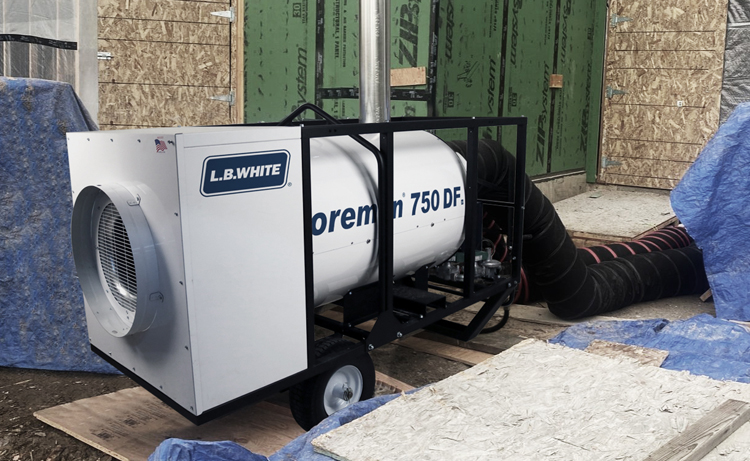

FOREMAN® 750 DF INDIRECT-FIRED PORTABLE HEATER

BTU/HR: 750,000

Foreman 750 DF Fuel Type: Dual Fuel (LP/NG)

The Foreman® 750 DF indirect fired heater provides clean dry heat, quiet operation and ultimate portability. Indirect fired technology exhausts combustion outside of heated environment while providing the ability to duct heat up to 100 feet. Operates from propane gas or natural gas, indoor/outdoor rated, and produces 750,000 BTU per hour. Industry-leading quiet operation at 70 dB or less. Equipped to move manually, with forklift pockets or lifting bail. Manufactured in Wisconsin from durable components to provide years of dependable performance. Buy this certified portable heater with confidence – backed by a 2-year warranty and lifetime of technical support.

FEATURES

  • Dual Fuel-Runs on LPG or NG
  • Delivers high CFM with 12” outlet and 16” inlet combination
  • Aids fuel efficiency with thermostat control, vent mode, and recirculation options
  • One-person portability
  • Efficient storage options with optional stacking kit accessory
  • Jobsite tough with indoor/outdoor rating, robust parts and protective frame
  • Only two-year warranty in the class
  • Operator-friendly control panel with:
    • Onboard voltmeter
    • Hour meter that clocks actual runtime (heat mode only)
    • Status and diagnostic lights

SPECS

FOREMAN® 750 DF
BTU/HR Rating 750,000
Blower Fan Output (CFM) 4,280
Fuel Type LP/NG
Fuel Consumption Max LP 34.5 lb/hr, NG 750 cu. ft./hr
Inlet Gas Pressure min.max LP/NG (in. W.C.) 8/13.5
Burner Type RIELLO
Outlet Static Pressure (in. W.C.) 2.5
Motor Horsepower 2
Electrical Supply (volts/hz/phase) 240/60/1
Amps (start/continuous) 38 / 12
L x W x H (in.) 94.0 x 32.0 x 53.0
Ship Weight (lbs) 865
Single Point Lifting Bale Standard
Fork Lift Holes Standard
Self-Diagnostic System Standard
Outlet Duct Diameter (in.) 12
Outlet Duct Connections 2
Outlet Duct Max Length (ft.) 100
Air Recirculation Inlet Dia. (in.) 20
U.S./Canadian Certification Yes

ACCESSORIES

Duct

Duct 12” dia x 25’L
Part #: 30052

Sold separately.

Duct

Duct 20" x 25', Recirculating, with Clamp
Part #: 30053

Sold separately.

Exhaust Pipe Extension

Exhaust Pipe Extension 6" dia.
Part #: 30161

Sold separately.

Rain Cap

Rain Cap Part #: 30162

Sold separately.

Regulator

Regulator Part #: 25141

Sold separately.

Hose

Hose 3/4” x 15 ft.
Part #: 25965

Sold separately.

Thermostat

Thermostat Nema 4X w/ 25 ft.
Part #: 30125

Sold separately.

Adapter Kit

Adapter Kit 16” dia. (fits two 12” dia. ducting)
Part #: 30902

Sold separately.

Stacking Kit

Stacking Kit Part #: 30903

Sold separately.


Additional parts & accessories are available here.

OWNERS MANUAL

Schematics, setup instructions, and more for Foreman® 750 DF Direct-Fired Portable Heaters.

SERVICE PARTS

Identify the replacement parts you may need for Foreman® 750 DF Direct-Fired Portable Heaters.
